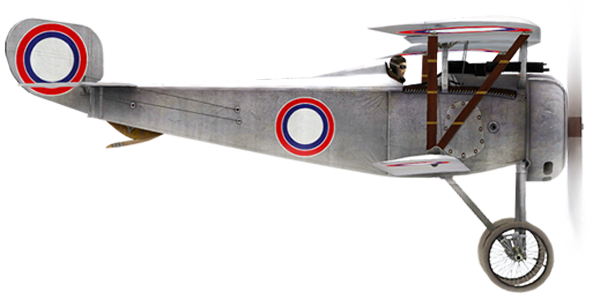

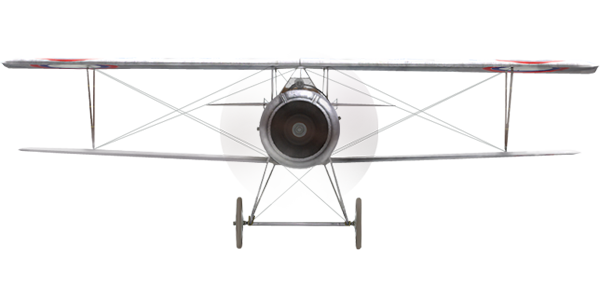

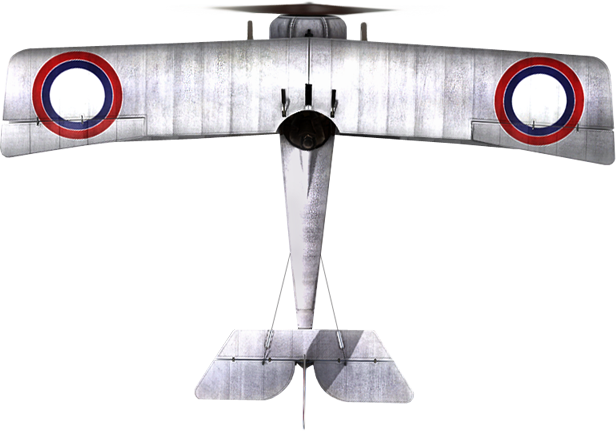

Nieuport 17.C1 RUS
Fighter
Russia
Free
Specifications

Engine 9 cyl. rotary Le Rhone 9J
Power (h.p.): 110
Height (mm): 2400
Length (mm): 5800
Wing span (mm): 8160
Wing surface (sq.m.): 14.75
Empty weight (kg): 375
Takeoff weight (kg): 560
Fuel capacity (l): 78
Oil capacity (l): 20
Climb rate
1000 m — 3 min. 06 sec.
2000 m — 6 min. 43 sec.
3000 m — 11 min. 34 sec.
4000 m — 19 min. 23 sec.
5000 m — 48 min. 00 sec.
Maximum airspeed (IAS: km/h)
sea level — 165
1000 m — 155
2000 m — 145
3000 m — 132
4000 m — 117
5000 m — 95
Service ceiling (m) 5350
Endurance (h.,min.) at 1000m
combat — 1 h. 50 min.
cruise — 2 h. 40 min.
Armament 1хVickers Mk.I 7,69mm, 400 rounds per barrel.
Description

The key difference between planes built by Dux and the imported aircraft was the use of pine wood instead of spruce. Also, half of the silk on the wings was replaced by linen. The plane was equipped with an imported engine, similar to the one used on the original plane. The rest of the Dux built planes were identical to the French Nieuport 17s.

The first Nieuports (Nieuport 10, recon two-seaters) arrived to Russia in 1915. In 1916 Dux started production, and by the end of 1917 it delivered 54 planes to frontline units.

While Russian fighter groups were flying Nieuport 10, the French were getting the Nieuport 11 and Nieuport 17 which were solely designed to be fighters. These rather small planes with a one-and-a-half wing design had outstanding maneuverability characteristics and a good climb rate with their top air speed reaching over 150 km/h. The Nieuport17 also had a more powerful engine and better armament than previous models. These machines formed the core of Russian fighter aviation. Dux produced more than 300 of them in 1916 and 1917. In addition, 165 Nieuport aircraft were shipped to Russia from France in 1916.

The Dux plant was an imperial (until 1917) aircraft factory based in Moscow. Dux was founded in 1894 by its owner Julius Meller who besides being a businessman and engineer was also an avid automobile sportsman.

Dux originally produced pipes and bicycles, but eventually manufactured steam machines and agricultural machinery. In 1909 Meller partnered with the famous cyclist, racer and aviator Utochkin and they started producing airplanes giving birth to the Russian aviation industry.

The very first aircraft built was based on a French Farman design in 1909, and in August 1910 a Farman IV took off for its first flight. During that period Dux owned four hangars on the Khodynskoe airfield where the test flights were held.

Before nationalization in 1918, Dux was manufacturing 22 types of planes including seaplanes. They were also making zeppelins. Dux was the army’s main airplane provider. In total it delivered 1,569 planes and seaplanes for the military needs.

In 1919 it was given a new name – National Aviation Plant #1.
